1 x brand new Rolling Sleeve air bag with internal bump stop. If you want x 2 then set qty to 2 when you check out.

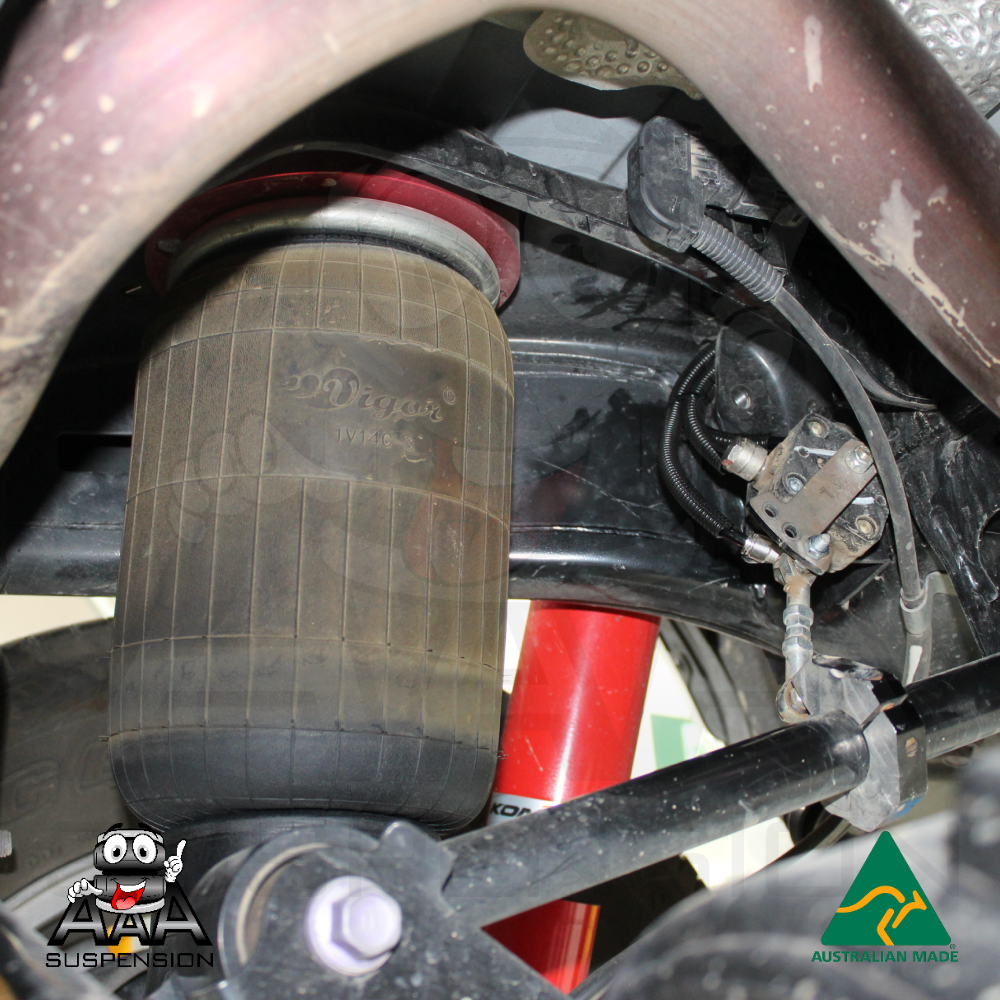

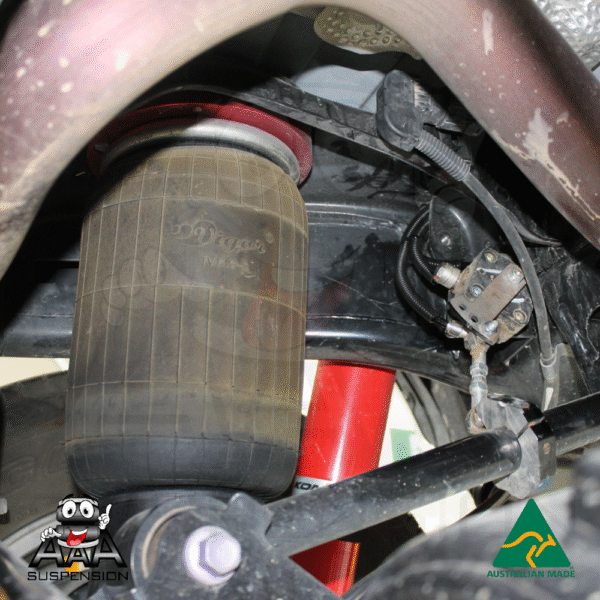

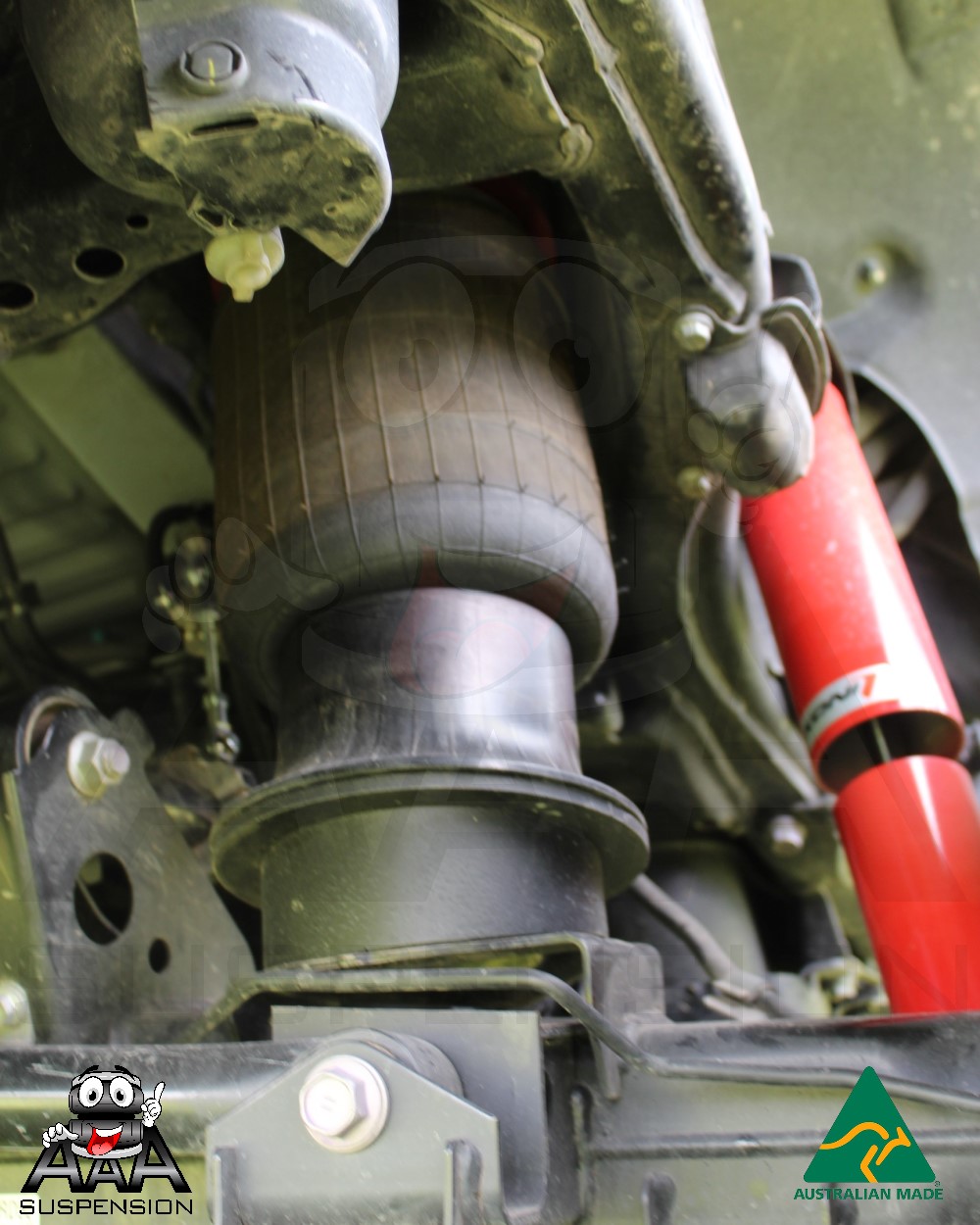

At AAA we use this bag in a variety of coil replacement kits. It is a complete unit with base cone and top plate crimped on.
This is the same style of bags used in trucks, buses and heavy transport. It is also commonly used in caravans. The advantage this offers over bellow style bags is long travel without bending or collapsing sideways if it travels in a circular short radius control arm application. Double bellows dont suffer bending but dont offer long travel. Triple bellow offer travel but need to travel in straight up/down. So this is a great fit for short radius control arm applications.
Rated to still be effective with 1.5t over the 1 x air bag.
This particular bag has an internal rubber bump stop. With the bump stop the bag compresses to 145mm. No additional bump stop is needed with this bag.
We will soon list an alternative bag without the bump stop for shorter compression – but a remote bump stop will need to be fabricated. We sell remote bump stops.

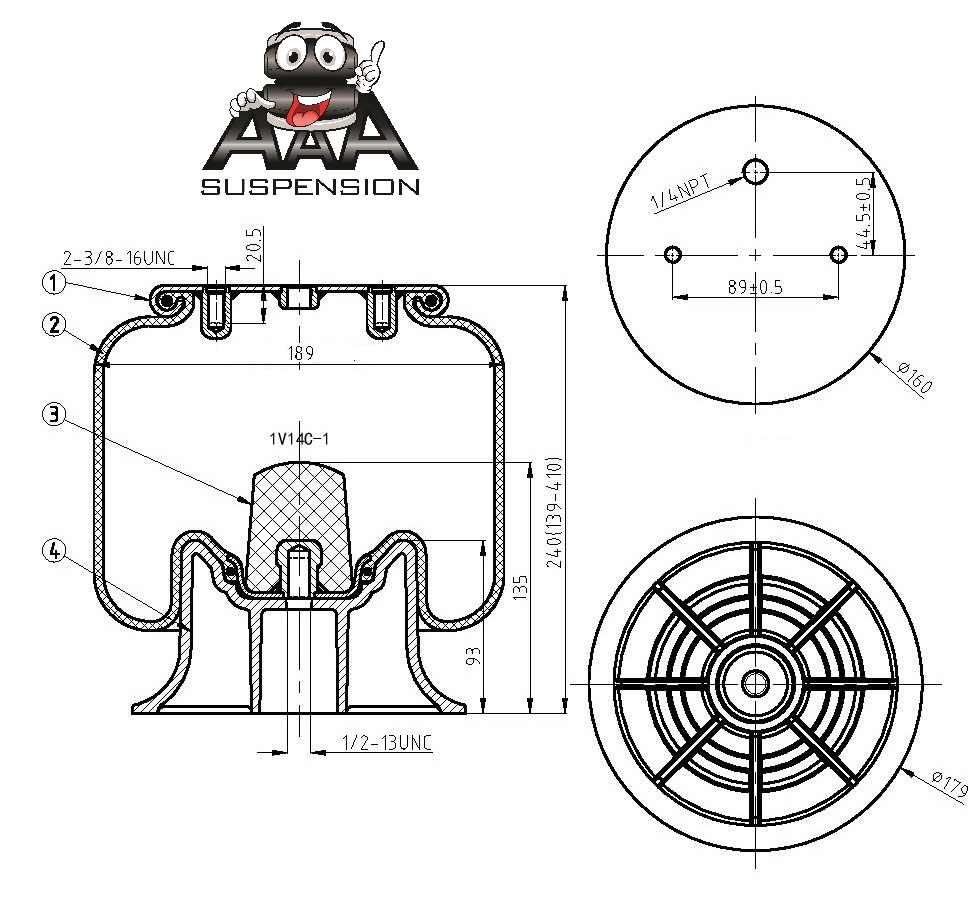

Specs :
- Internal bump stop fitted

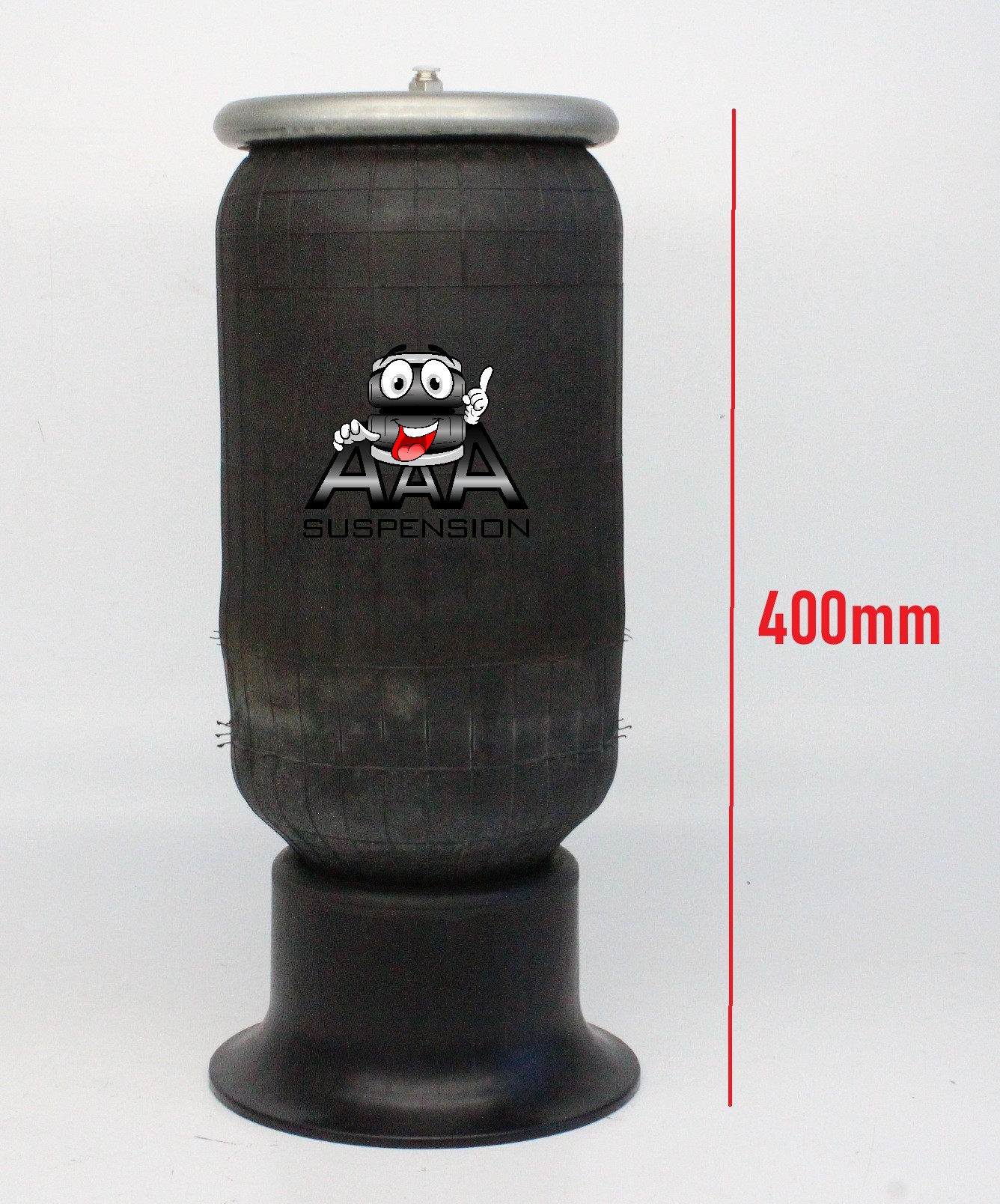

- Extended 400mm

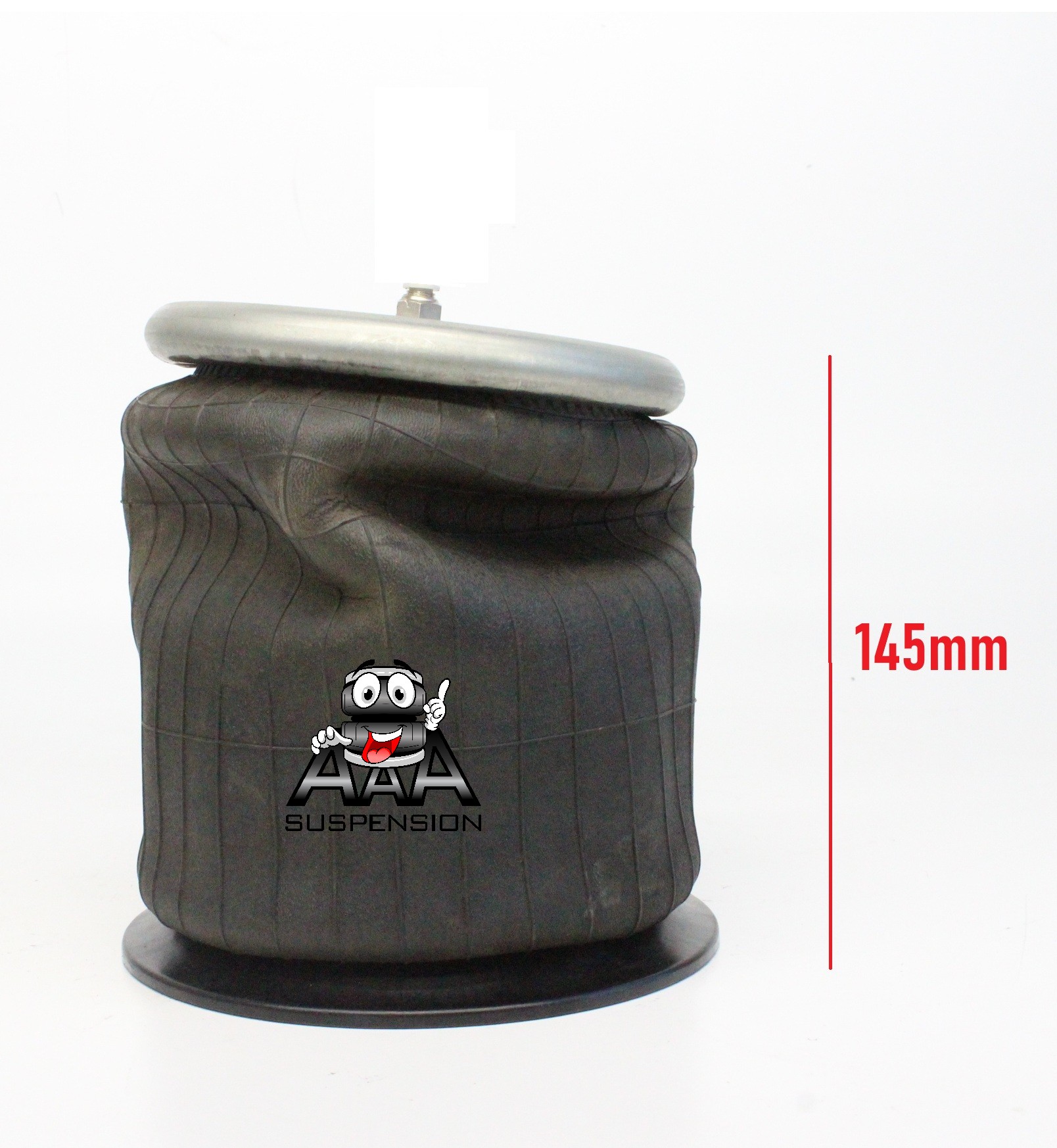

- Compressed 145mm

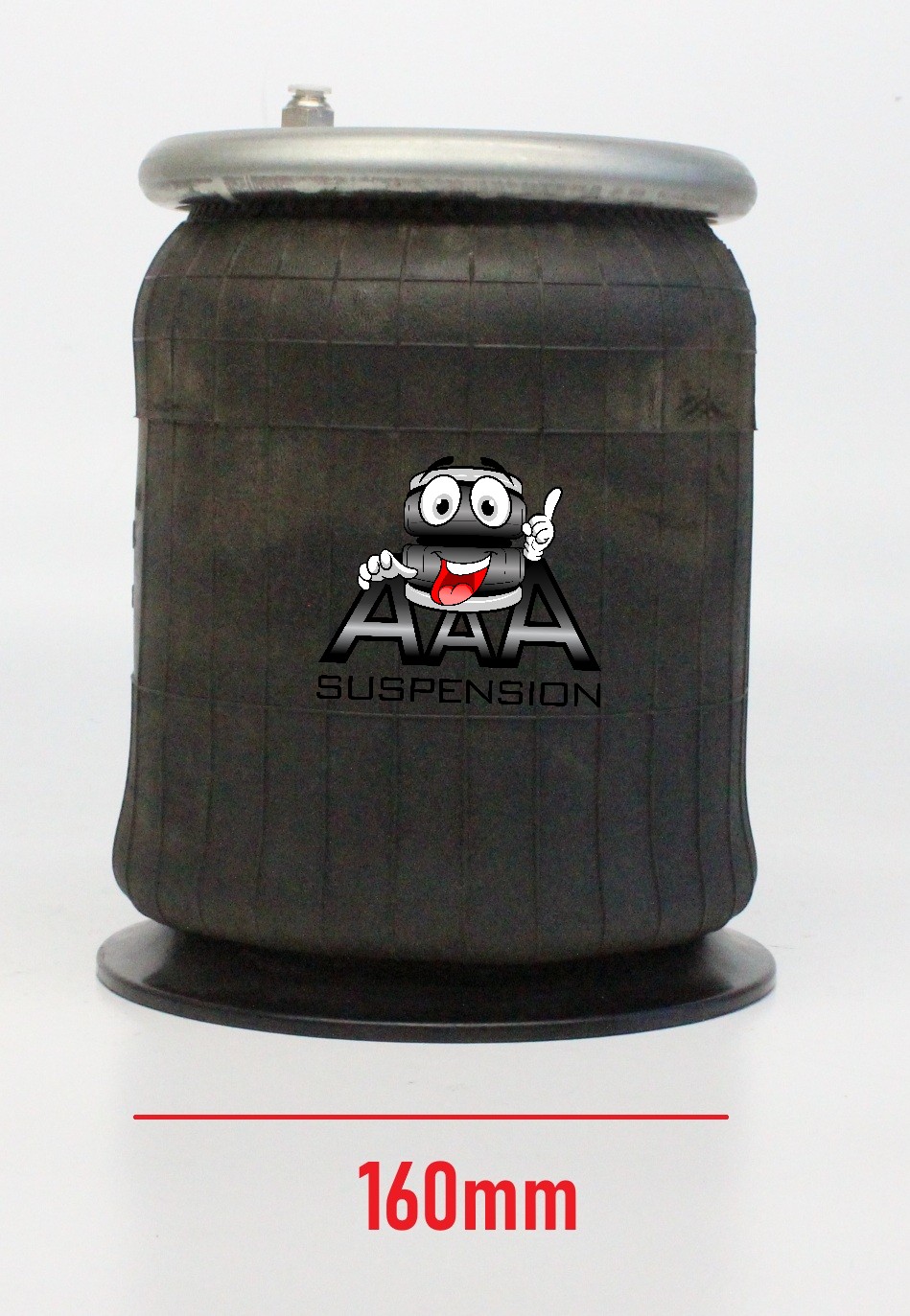

- Width 160mm
- Top mount – 2 x female threads (3/8 UNC)
- Bottom Mount – 1 x female thread (1/2 UNC)
- Air Fitting Port on top – female (1/4 NPT)
