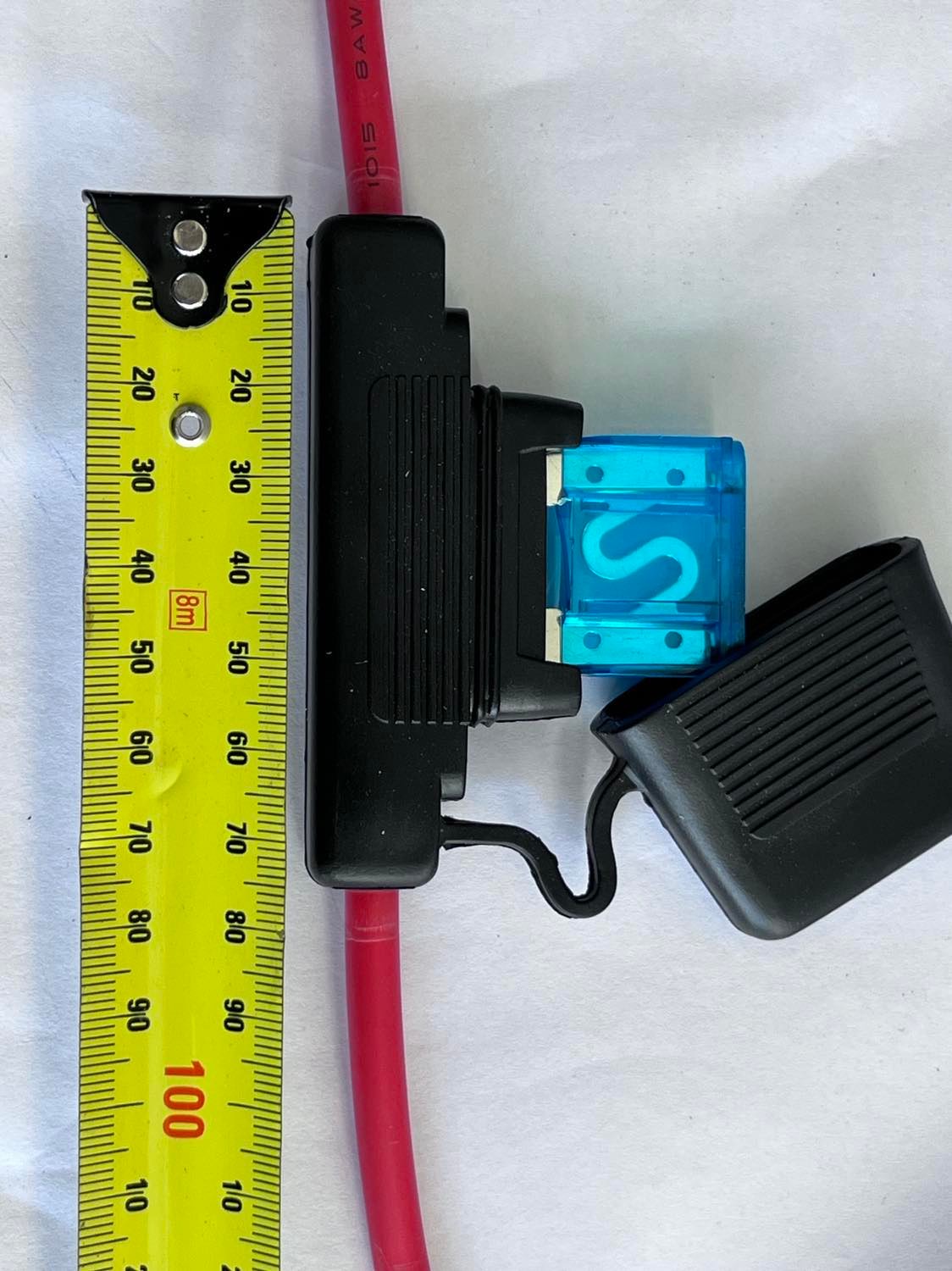

2m long in line Maxi Fuse holder and 60A Fuse.

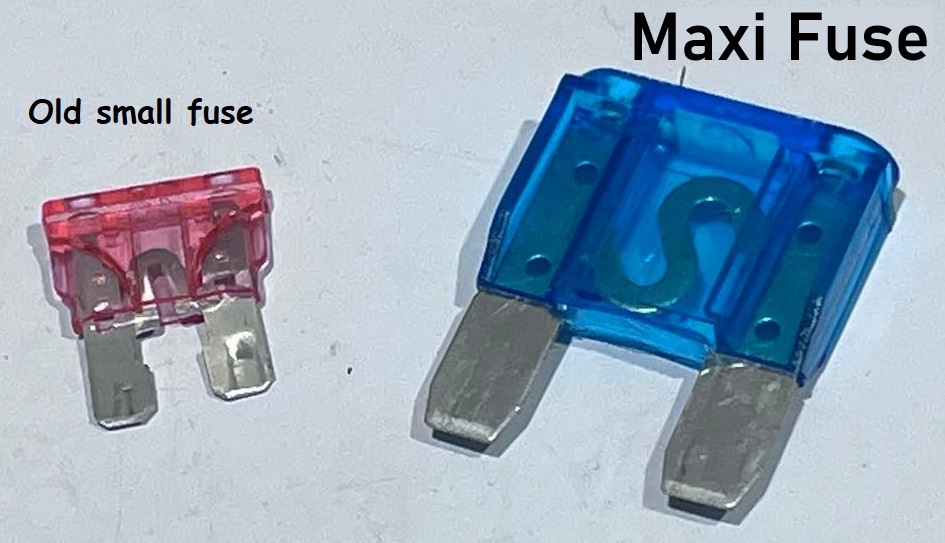

This is the enormous maxi fuse for the heaviest of 12V or 24V loads.
Normally these come in short lengths and always you need to lengthen them. Heavy cable can be a bitch to solder. But bitch no more …

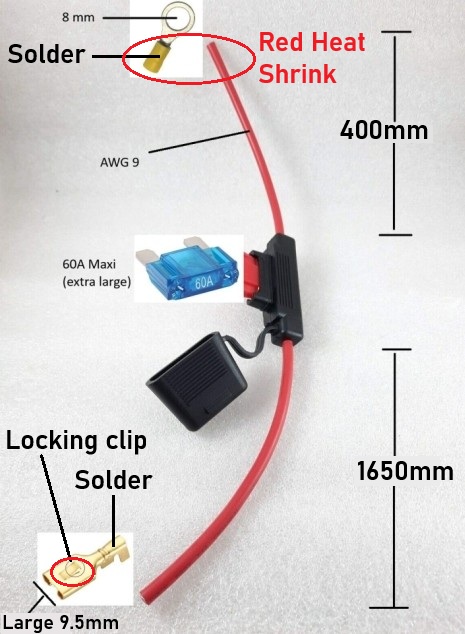

This is 2m long – we figured it is much easier to chop off what you don’t need than have to make it longer.
We also added the crimped ring to the short battery end and that was soldered for added connection. And in the off chance 2m is the right length we added relay mount crimp (also soldered) with locking clip in 9.5mm for the large relays out there. The dollars saved with that lot is minimal but consider the time saved.
No wonder this is so popular with auto electricians – they are saving a stack of time by having the eye on the short end and not having to join more wire to it to reach a relay up to 2m away.
The wire is copper core AWG 9 so approx 2.9 mm core diameter or 6.7 mm2
The fuse supplied with this is 60 Amp.
