Digital In-Cab Kit (Large)

$725.00

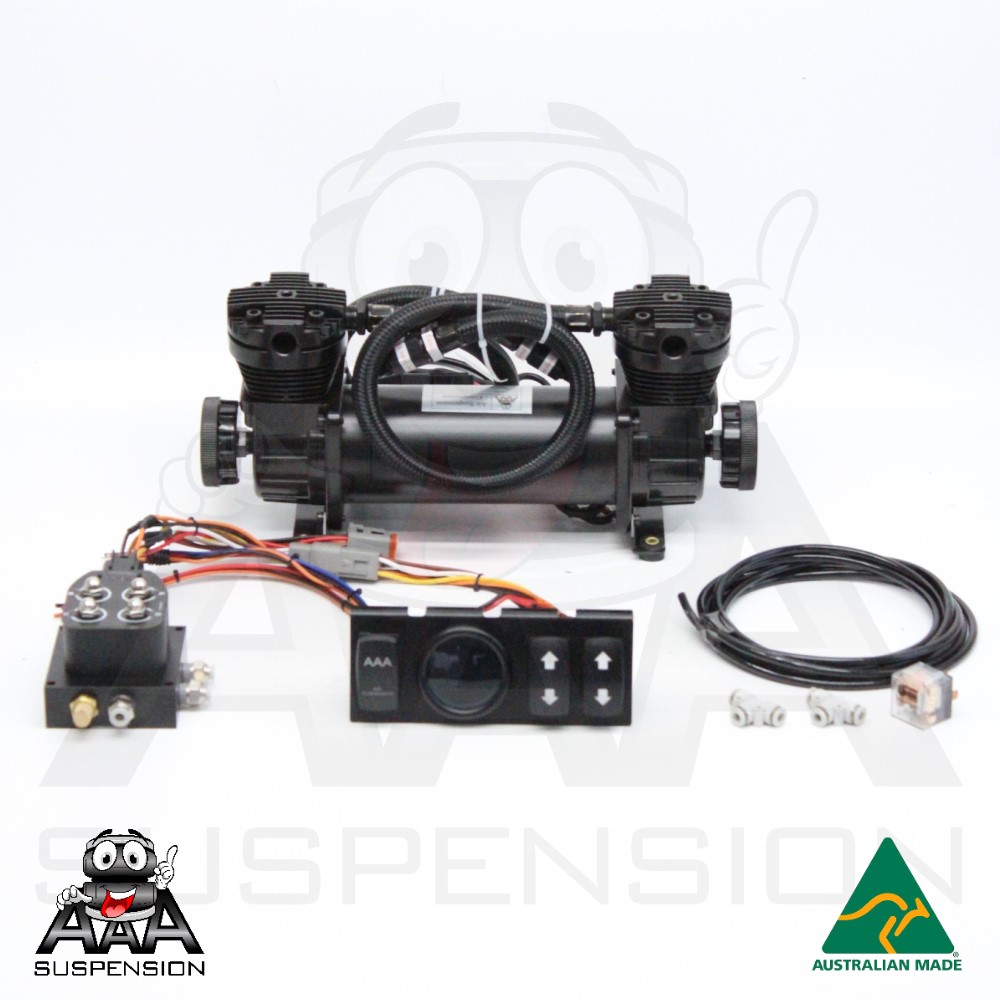

This is a complete digital in cab kit for air bags.

Read description below to find details on all options.

SKU: In Cab + Large Compressor Categories: , ,

Kit will come with a large compressor. Ideal for inflating airbags and other high air-flow rate tasks such as inflating tyres and filling air tanks.

This kit has digital LED display with electric push buttons that operate the bags. Each bag has an up button and a down button, so you can control each bag independently. Each of the buttons operate a 12v electronic air valve solenoid. The up solenoid opens and lets air in from compressor to the bag, alternatively the down solenoid opens and lets air out of the bag. The LED gauge has 2 readings – one per bag. It has electronic senders that connect to the air bag lines. The gauge mounts into a facia panel that also facilitates the up/down buttons. There is a manifold (junction) that splits from compressor to the 2 bags but also has a pressure switch to sense the back pressure for the compressor. When it reaches max pressure (like bags not being inflated) the compressor will automatically turn off. It will automatically restart when pressure drops (like when bag is being inflated).

Comes with all the air fittings such as the T pieces so you can hook into your existing air lines and also mount up the solenoids. Comes with an easy to follow diagram and fitting instructions.

Upgrade options:
Tyre Inflation – Air hose kit to plug into one of the valves to allow for inflating tyres from your fitted compressor. This can be routed via an airhose to position the air valve wherever you like.
3-way Gauge – A larger gauge to show pressure in an onboard air tank.

We also sell air tanks too. Be sure to check those out.

The AAA CX10 Compressor is our large 12V compressor solution suited to heavy duty applications above and beyond air suspension such as running air tanks and pumping tyres.
  • Voltage: 12 Volt.
  • Maximum Current: 45 Amps.
  • Maximum Working Pressure: 300 PSI.
  • No Oil – means it can be mounted upside down or on its side.
  • Air Filter maybe cleaned and mounted in a different location like away from water
  • No plastic internal parts
  • 1/4″┬áBSP air outlet
  • Check Valve on air outlet – means air wont leak back through compressor when off
  • Comes with its own wiring harness to make the installation easier.
  • Dimensions: 300 (L) x 100 (W) x 165 (H)

We also have a smaller compressor which costs less and is more suited to just air suspension, rather than also inflating tyres.

Click here for instructions.

Weight 8 kg
Dimensions 30 × 20 × 30 cm
Upgrades

None, Tyre Inflation, 3-way Gauge, Tyre Inflation + 3-way Gauge
