2603 Replacement Air Bag


This is a single airbag. For a pair, make sure you purchase Quantity: 2.

SKU: 2603 Replacement Air Bag Categories: , Tag:

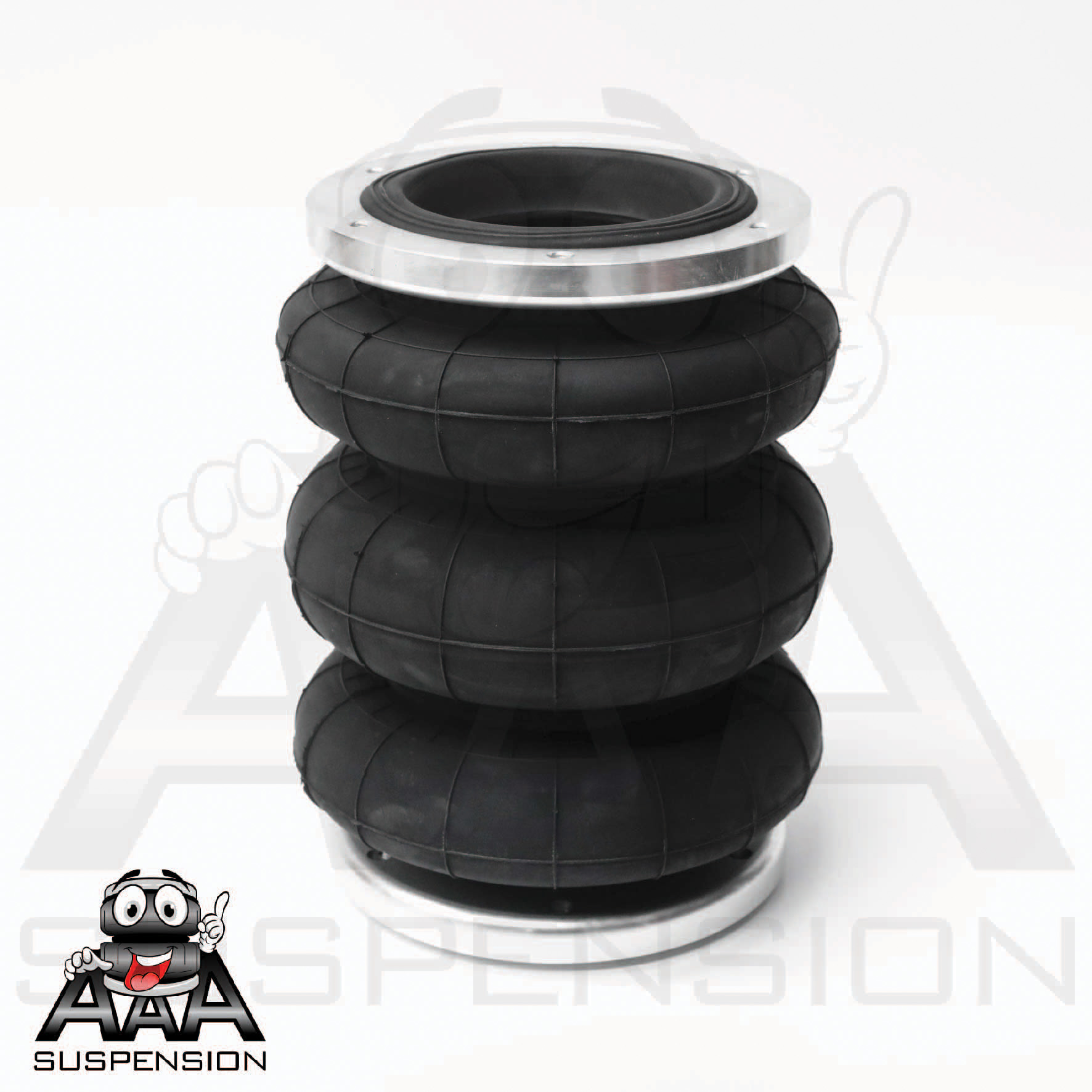

This is 1x brand new #2603 air bag with rings.
Part #2603.
This is a triple convoluted bag so it has a longer reach over our heavy duty double convoluted bags.
– Maybe you are going on a big trip and want to carry a spare.
– Maybe you have an old kit (these kits have been around for about 15 years) and you want to replace your old bags with fresh new ones.
– Maybe you have a damaged bag.
– Maybe you have lifted your rig and need a bit of extra reach

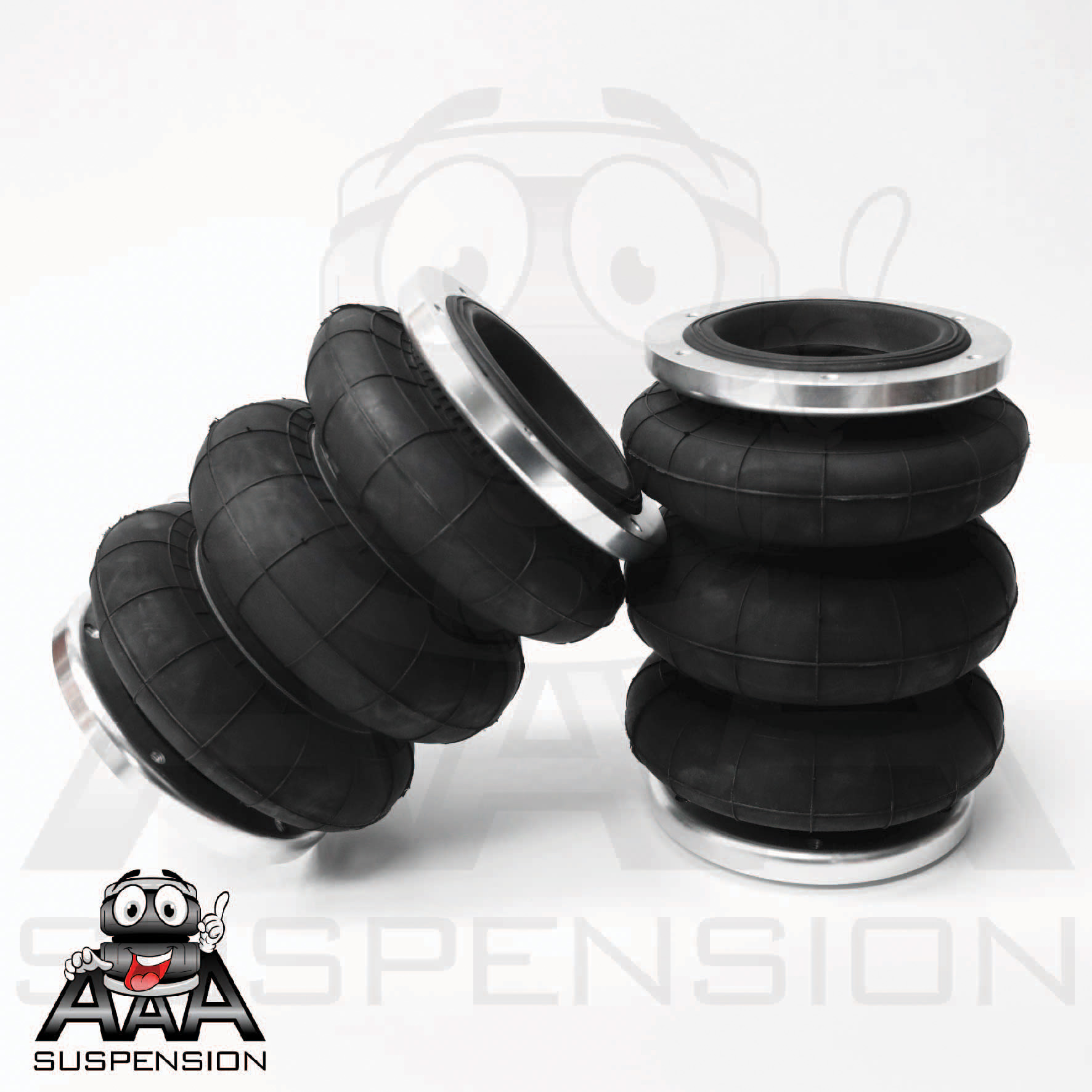

The bag comes with 2 new alloy rings as pictured. The ends of these bags are larger than our 2500 and 2400 bags, so the end plates are not compatible.

There are no end plates – we assume with these bags you already have the end plates or mounting kit and almost always those parts don’t need replacing. We can however provide end plates or other brackets upon request.

Specifications :

  • Fully Compressed – 78mm (90mm with 6mm ends fitted)
  • Max Diameter- 185mm (widest when fully compressed)
  • Max height – 325mm
  • Max working pressure 0-160psi
  • Test pressure – 480psi
  • Burst pressure – 1000psi
Weight 1 kg
Dimensions 15 × 15 × 15 cm
